Part Image

NCV4276CDS33R4G - onsemi

Description: Thermal Overload; Output Current up to 400 mA; Fault Protections:; 3.3 V, 5.0 V, and Adjustable Voltage Version (from 2.5 V to 20 V) ±2% Output Voltage; Inhibit Input; +45 V Peak Transient Voltage; 500 mV (max) Dropout Voltage (5.0 V Output); AEC-Q100 Qualified; -42 V Reverse Voltage; Short Circuit

Download NCV4276CDS33R4G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

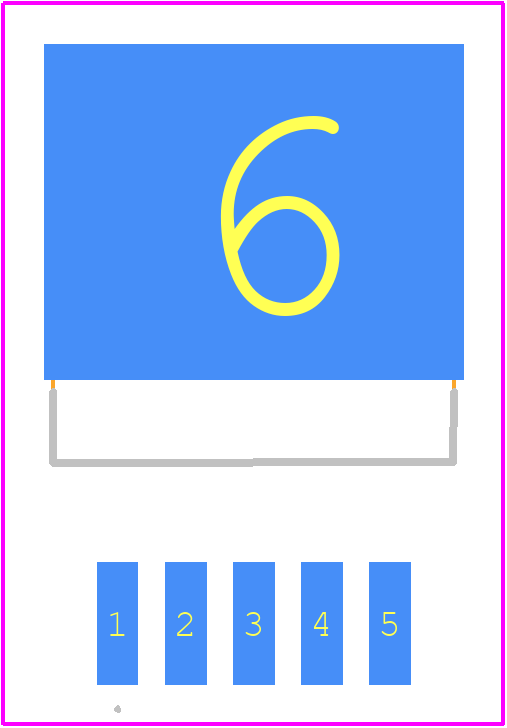

NCV4276CDS33R4G - onsemi PCB footprint - Other - Other - NCV4276CDS33R4G-2
click to zoom
3D Models
NCV4276CDS33R4G - onsemi  - 3D model - Other - NCV4276CDS33R4G-2
click to zoom

NCV4276CDS33R4G Details

  • Manufacturer Part Number:

    NCV4276CDS33R4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK-5

  • Package Description:

    D2PAK-5

  • Manufacturer Package Code:

    936A-02

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    1.2 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.02 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.1 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    4.826 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    9.1945 mm

NCV4276CDS33R4G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
  • The NCV4276CDS33R4G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
  • Yes, the NCV4276CDS33R4G is suitable for high-reliability and automotive applications. However, it's essential to review the device's AEC-Q100 qualification and to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
