Description:Thermal Overload; Output Current up to 400 mA; Fault Protections:; 3.3 V, 5.0 V, and Adjustable Voltage Version (from 2.5 V to 20 V) ±2% Output Voltage; Inhibit Input; +45 V Peak Transient Voltage; 500 mV (max) Dropout Voltage (5.0 V Output); AEC-Q100 Qualified; -42 V Reverse Voltage; Short Circuit
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
The NCV4276CDSADJR4G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
To troubleshoot issues with the overcurrent protection feature, check the device's datasheet for the expected behavior, verify that the device is properly configured, and use an oscilloscope to monitor the device's behavior during fault conditions.
For high-reliability applications, consider using a redundant design, implementing fault detection and correction mechanisms, and following a rigorous testing and validation process to ensure the device meets the required reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV4276CDSADJR4G Overview

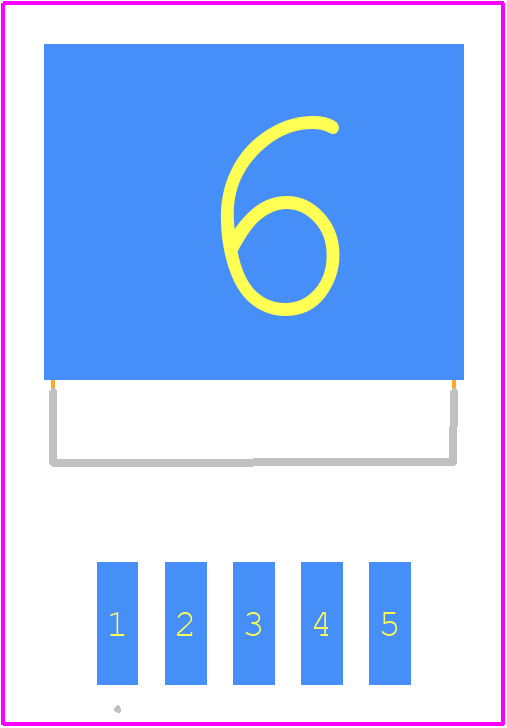

Use the download button to access the NCV4276CDSADJR4G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV42,
or try a keyword search, such as Linear Regulator ICs
