NCV4299D233R2G - onsemi

Description: 3.3 or 5.0 V, +/-2%, 150 mA; Low Current Consumption 90 uA (Typ) in the ON Mode Extremely Low Current Consumption 1.0 uA in the Off Mode; Early Warning Output Capability; Adjustable Reset Threshold and Reset Output Low Down to VQ = 1.0 V; Fault protection: 60 V peak Transient Voltage protection -40 V Reverse Input Voltage protection Short circuit protection Thermal overload protection

Download NCV4299D233R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

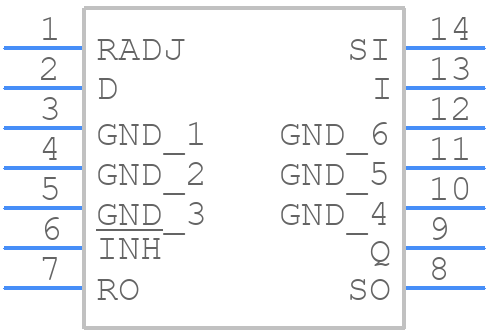

NCV4299D233R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV4299D233R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV4299D233R2G
click to zoom
3D Models
NCV4299D233R2G - onsemi - 3D model - Small Outline Packages - NCV4299D233R2G
click to zoom

NCV4299D233R2G Details

  • Manufacturer Part Number:

    NCV4299D233R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.22 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    5.5 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Line Regulation-Max:

    0.025%

  • Load Regulation-Max:

    0.03%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.15 A

  • Output Voltage1-Max:

    3.37 V

  • Output Voltage1-Min:

    3.23 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

NCV4299D233R2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 20mm x 20mm, and using multiple vias to connect the thermal pad to the ground plane. Additionally, keeping the thermal pad away from other heat sources and using a thermal interface material (TIM) can help to improve thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow the derating guidelines provided in the datasheet, and to ensure that the device is operated within its specified temperature range. Additionally, using a heat sink or thermal management system can help to reduce the device's junction temperature and improve reliability.
  • The recommended soldering conditions for the NCV4299D233R2G involve using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds, and ensuring that the device is not exposed to temperatures above 300°C (572°F) during the soldering process.
  • To troubleshoot issues with the device's overcurrent protection feature, check the input voltage and current levels to ensure they are within the specified range, and verify that the device is properly configured and enabled. Additionally, checking the device's fault flag and current sense resistor values can help to identify the root cause of the issue.
  • Using a different input capacitor value than recommended can affect the device's stability and performance. A larger input capacitor value can improve the device's noise immunity, but may also increase the startup time and reduce the device's ability to respond to transient events. A smaller input capacitor value can improve the device's transient response, but may also reduce its noise immunity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV4299D233R2G Overview

Use the download button to access the NCV4299D233R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV42, or try a keyword search, such as Linear Regulator ICs
