NCV47701DAJR2G - onsemi

Description: Last Shipments - LDO Regulator, 350 mA, Low Dropout, High PSRR

Download NCV47701DAJR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

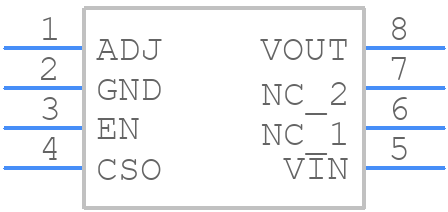

NCV47701DAJR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV47701DAJR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCV47701DAJR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCV47701DAJR2G Details

  • Manufacturer Part Number:

    NCV47701DAJR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.05263

  • Load Regulation-Max(%):

    1.4%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.35 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

NCV47701DAJR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV47701DAJR2G should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the exposed pad of the device. The layout should also minimize the distance between the device and the input/output capacitors to reduce parasitic inductance.
  • The choice of input and output capacitors for the NCV47701DAJR2G depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the maximum input voltage and current, while the output capacitor should be able to handle the maximum output voltage and current.
  • The NCV47701DAJR2G is rated for operation from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, the device should be operated at a temperature below 125°C to ensure reliable operation.
  • The NCV47701DAJR2G requires a bias voltage of 4.5V to 5.5V on the EN pin to enable the device. The bias voltage should be stable and noise-free to ensure optimal performance. A voltage regulator or a low-dropout regulator can be used to generate the bias voltage.
  • The NCV47701DAJR2G is capable of delivering up to 1A of output current, but the maximum output current depends on the specific application and the thermal design of the system. The device should be operated within the recommended operating conditions to ensure reliable operation.
