NCV494BDR2G - onsemi

Description: Output Control for Push-Pull or Single-Ended Operation; On-Chip Oscillator with Master or Slave Operation; Uncommitted Output Transistors Rated to 500 mA Source or Sink; Undervoltage Lockout; Complete Pulse Width Modulation Control Circuitry; On-Chip Error Amplifiers; Adjustable Deadtime Control; On-Chip 5.0 V Reference; Pb-Free Packages are Available*; Variable Frequency Operation (up to 200 KHz); PWM Buck Controller Configuration

Download NCV494BDR2G Model

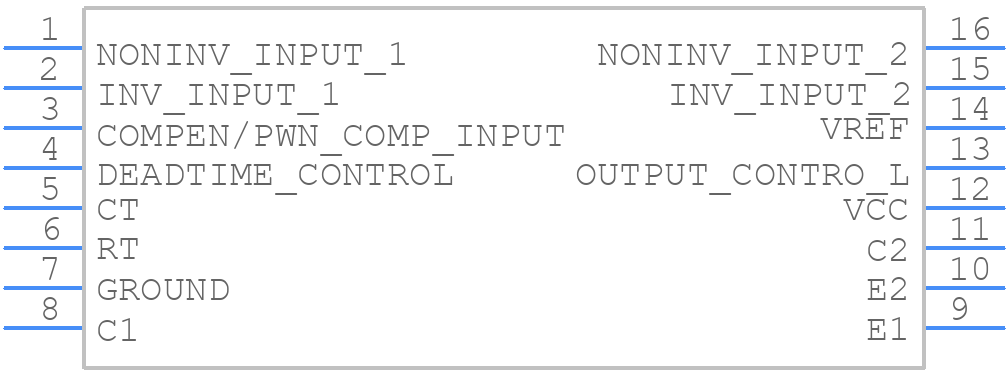

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV494BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom
3D Models
NCV494BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom

NCV494BDR2G Details

  • Manufacturer Part Number:

    NCV494BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    15 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV494BDR2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV494BDR2G is -40°C to 150°C.
  • To ensure proper biasing, connect the input pins (VIN) to a stable voltage source, and decouple the output pins (VOUT) with a capacitor to ground. Also, ensure the input voltage is within the recommended range (4.5V to 18V).
  • To minimize EMI, use a multi-layer PCB with a solid ground plane, keep the input and output traces short and separate, and use a shielded inductor. Also, place the input and output capacitors close to the device.
  • To calculate the output voltage ripple, use the following formula: ΔVOUT = (IOUT * RLOAD) / (fSW * COUT), where IOUT is the output current, RLOAD is the load resistance, fSW is the switching frequency, and COUT is the output capacitance.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher, and an ESR of 0.1Ω or less.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV494BDR2G Overview

Use the download button to access the NCV494BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV49, or try a keyword search, such as Switching Regulator or Controllers
