NCV5104DR2G - onsemi

Description: High Voltage range: up to 600 V; dV/dt Immunity 50 V/nsec; Gate drive supply range from 10 V to 20 V; High and Low drive outputs; Output source / sink current capability: 250 mA / 500 mA; 3.3 V and 5 V input logic compatible; Up to Vcc swing on input pins; Matched propagation delays between both channels; 1 input with internal fixed dead time (520 ns); Under Vcc LockOut (UVLO) for both channels; Pin to pin compatible with Industry standard

Download NCV5104DR2G Model

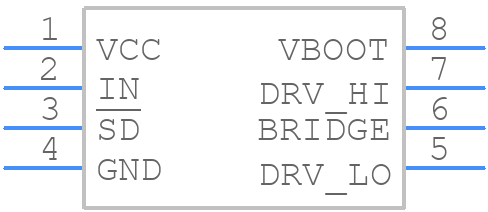

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV5104DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom
3D Models
NCV5104DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom

NCV5104DR2G Details

  • Manufacturer Part Number:

    NCV5104DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NCV5104DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink.
  • To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range, use a heat sink or thermal pad, and follow proper PCB design and layout guidelines.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure.
  • To protect the device from EOS, use a transient voltage suppressor (TVS) or a zener diode to clamp voltage transients, and ensure that the device is operated within the recommended voltage range.
  • The recommended storage condition for the device is in a dry, cool place, away from direct sunlight, and in its original packaging or an anti-static bag.
