NCV51200MNTXG - onsemi

Description: Input Voltage Rails: Supports 2.5 and 3.3 V Rails; PVCC Voltage Range: 1.1 to 3.5 V; Integrated Power MOSFETs; Fast Load-Transient Response; PGOOD-Logic output pin to Monitor VTT Regulation; EN-Logic input pin for Shutdown mode; VRI-Reference Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider; Remote Sensing (VTTS); Built-in Soft Start, Under Voltage Lockout and Over Current Limit

Download NCV51200MNTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

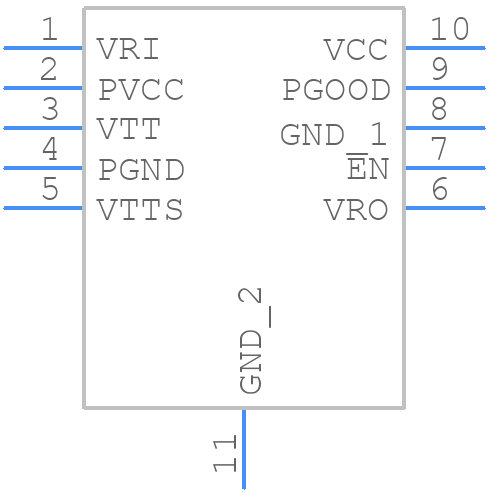

NCV51200MNTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV51200MNTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom
3D Models
NCV51200MNTXG - onsemi - 3D model - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom

NCV51200MNTXG Details

  • Manufacturer Part Number:

    NCV51200MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    485C

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Differential Output:

    NO

  • Interface IC Type:

    BUS TERMINATOR SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Signal Lines:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV51200MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal resistance. Also, consider using thermal protection and overcurrent protection circuits.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Also, ensure that the PCB layout is optimized for low EMI radiation.
  • Check the input voltage, output voltage, and current draw. Verify that the device is properly configured and that the output capacitor is of sufficient value. Also, check for any signs of overheating or thermal shutdown.
  • The device is rated for operation in humid environments, but moisture can still affect reliability. Ensure that the device is properly sealed or conformally coated, and consider using a humidity sensor to monitor environmental conditions.
