NCV51313CMNWTXG - onsemi

Description: 2.0 A / 3.0 A Current Capability; Very fast propagation delay (typ. 20 ns for B version); High dv/dt immunity up to 50 V/ns and negative transient immunity; 3x3 DFNW6 package (NCV51313AMNWTWG and NCV51313CMNWTXG); NCV51313C: Improved Maximum Propagation Delay, Delay Matching, and Output Resistance Compared to NCV51313A; High Voltage Range: Up to 130 V; AEC-Q100 Qualified

Download NCV51313CMNWTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

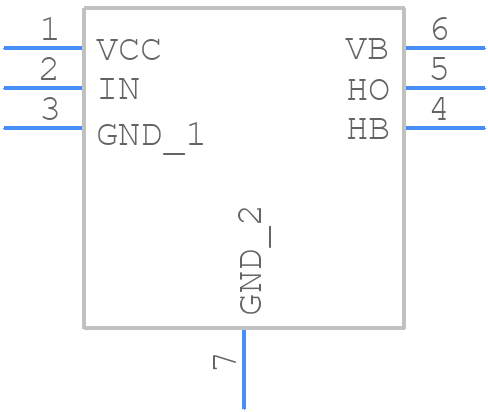

NCV51313CMNWTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV51313CMNWTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW6 3x3, 0.95P CASE 507BG ISSUE O..
click to zoom
3D Models
NCV51313CMNWTXG - onsemi - 3D model - Small Outline No-lead - DFNW6 3x3, 0.95P CASE 507BG ISSUE O..
click to zoom

NCV51313CMNWTXG Details

  • Manufacturer Part Number:

    NCV51313CMNWTXG

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV51313CMNWTXG Overview

Use the download button to access the NCV51313CMNWTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV51, or try a keyword search, such as Peripheral Drivers
