NCV51511PDR2G - onsemi

Description: Integrated Bootstrap Diode for High Side Gate Drive; Bootstrap Supply Voltage Range up to 100V; 3 A Source, 6 A Sink Output Current Capability; Drives 1nF Load with Typical Rise/Fall Times of 6 ns/4 ns; 2 ns Delay Matching (Typical); AEC Qual up to 150°C Tj; HS robustness against negative transients

Download NCV51511PDR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

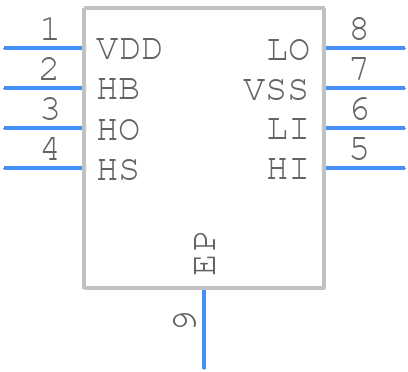

NCV51511PDR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV51511PDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 EP CASE 751AC ISSUE D_2021
click to zoom
3D Models
NCV51511PDR2G - onsemi - 3D model - Small Outline Packages - SOIC−8 EP CASE 751AC ISSUE D_2021
click to zoom

NCV51511PDR2G Details

  • Manufacturer Part Number:

    NCV51511PDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 EP

  • Package Description:

    HSOP, SOP8,.25

  • Manufacturer Package Code:

    751AC

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • Built-in Protections:

    UNDER VOLTAGE; TRANSIENT

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    96 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL GOLD PALLADIUM

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.045 µs

  • Turn-on Time:

    0.047 µs

  • Width:

    3.9 mm
