NCV5700DR2G - onsemi

Description: High Current Output (+4.0/-6.0 A) at IGBT Miller Plateau voltages; Low VOH and VOL; Active Miller Clamp; DESAT Protection with Programmable Delay

Download NCV5700DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

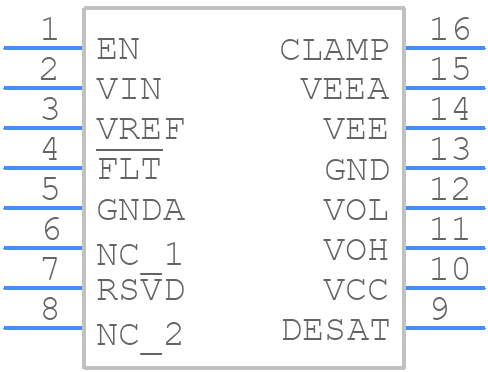

NCV5700DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV5700DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
NCV5700DR2G - onsemi - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

NCV5700DR2G Details

  • Manufacturer Part Number:

    NCV5700DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2017-09-06

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    7.8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    13.2 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3.9 mm

NCV5700DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV5700DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
  • To ensure the NCV5700DR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive voltage or current, and that the thermal design is adequate to keep the junction temperature below the maximum rating.
  • A low-ESR ceramic capacitor with a value of 4.7uF to 10uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 25V.
  • Choose an output capacitor with a low ESR and a value between 10uF to 22uF. The capacitor should have a voltage rating of at least 2x the output voltage. Consider using a ceramic or polymer capacitor with a low ESL and a high ripple current rating.
  • A shielded inductor with a value between 1uH to 4.7uH is recommended. The inductor should have a saturation current rating of at least 2x the peak current and a DC resistance (DCR) of less than 100mΩ.
