Description:High Current Output (+4.0/-6.0 A) at IGBT Miller Plateau voltages; Low VOH and VOL; Active Miller Clamp; DESAT Protection with Programmable Delay
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
The NCV5702DR2G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh ESD environments.
Yes, the NCV5702DR2G can be used in switching regulator applications, but it's essential to ensure that the device is operated within its recommended switching frequency range and that the output voltage is properly filtered to minimize ringing and overshoot.
To troubleshoot issues with the NCV5702DR2G, start by verifying the device's pin connections and voltage levels. Use an oscilloscope to check the output voltage and current waveforms, and consult the datasheet and application notes for guidance on common issues and solutions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV5702DR2G Overview

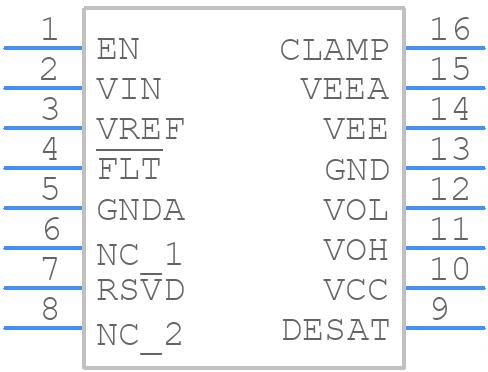

Use the download button to access the NCV5702DR2G schematic symbol, PCB footprint, and 3D model.
