NCV5703ADR2G - onsemi

Description: High Current Output (+4.0/-6.0 A) at IGBT Miller Plateau voltages; Low VOH and VOL; DESAT Protection with Programmable Delay; Active Miller Clamp (NCV5703A only)

Download NCV5703ADR2G Model

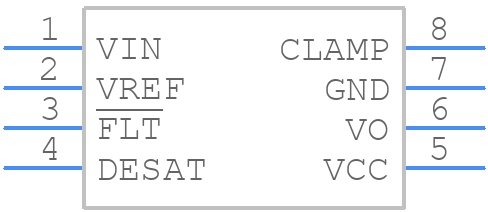

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV5703ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
NCV5703ADR2G - onsemi  - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

NCV5703ADR2G Details

  • Manufacturer Part Number:

    NCV5703ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2019-08-23

  • Manufacturer:

    onsemi

  • YTEOL:

    8.4

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    7.2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    13.2 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3.9 mm

NCV5703ADR2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV5703ADR2G is -40°C to 150°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be stabilized by adding a 10nF capacitor between the VOUT and GND pins.
  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher.
  • The output voltage can be calculated using the formula: VOUT = (R1/R2) x 0.8V, where R1 and R2 are the resistors connected to the FB pin.
  • The maximum input voltage that the NCV5703ADR2G can handle is 28V.
