NCV5703CDR2G - onsemi

Description: High Current Output (+4.0/-6.0 A) at IGBT Miller Plateau voltages; Low VOH and VOL; DESAT Protection with Programmable Delay; Active Miller Clamp (NCV5703A only)

Download NCV5703CDR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

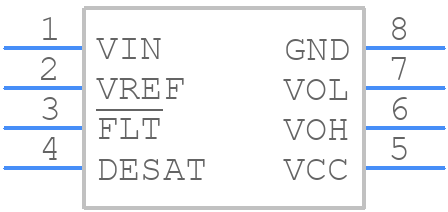

NCV5703CDR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV5703CDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
NCV5703CDR2G - onsemi - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

NCV5703CDR2G Details

  • Manufacturer Part Number:

    NCV5703CDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2019-08-23

  • Manufacturer:

    onsemi

  • YTEOL:

    8.4

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    13.2 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3.9 mm

NCV5703CDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV5703CDR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive nodes.
  • To ensure the NCV5703CDR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and that the input voltage and output current are within the recommended operating ranges.
  • The recommended input capacitor value for the NCV5703CDR2G is 10uF to 22uF, with an X7R or X5R dielectric. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • To troubleshoot issues with the NCV5703CDR2G, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Next, verify that the input voltage and output current are within the recommended operating ranges. Use an oscilloscope to check for oscillations or instability, and ensure that the device is properly decoupled.
  • Yes, the NCV5703CDR2G is suitable for high-reliability applications. It is AEC-Q100 qualified and has been designed to meet the stringent requirements of the automotive industry. However, it's essential to follow the recommended operating conditions and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
