NCV5705BDR2G - onsemi

Description: Bipolar power supply support; High Current Output (+4.0/-6.0 A) at IGBT Miller Plateau voltages; Low VOH and VOL; DESAT Protection with Programmable Delay

Download NCV5705BDR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

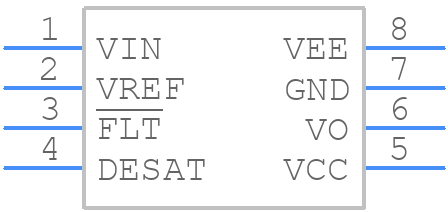

NCV5705BDR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV5705BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCV5705BDR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCV5705BDR2G Details

  • Manufacturer Part Number:

    NCV5705BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2019-12-18

  • Manufacturer:

    onsemi

  • YTEOL:

    8.37

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    7.5 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    7.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    4 mm

NCV5705BDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the IC and connect it to a heat sink or a thermal plane.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a heat sink or thermal plane, and consider derating the device's power dissipation according to the temperature rating. Additionally, ensure that the device is operated within its specified temperature range.
  • The recommended input and output capacitors for the NCV5705BDR2G are typically 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 25V or higher. The capacitor values may vary depending on the specific application and operating conditions.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the feedback resistors are correctly connected. Also, verify that the device is properly configured and that there are no layout or noise issues affecting the device's operation.
  • Operating the device beyond its specified maximum ratings can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device is operated within its specified ratings to guarantee reliable operation and to prevent damage to the device or the surrounding circuitry.
