NCV57080BDR2G - onsemi

Description: High Peak Output Current (+6.5 A/-6.5 A); Short Propagation Delays with Accurate Matching; High Transient & Electromagnetic Immunity; 3.75 KVrms On-Chip Galvanic Isolation; Wide Bias Voltage Ranges and Input Voltage Range; Active Miller Clamp or Negative Gate Voltage or Split Outputs

Download NCV57080BDR2G Model

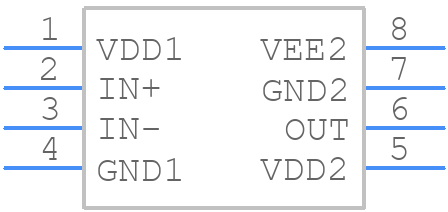

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV57080BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCV57080BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCV57080BDR2G Details

  • Manufacturer Part Number:

    NCV57080BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    2020-03-27

  • Manufacturer:

    onsemi

  • YTEOL:

    8.38

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    12.4 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.085 µs

  • Turn-on Time:

    0.085 µs

  • Width:

    3.9 mm

NCV57080BDR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • The recommended input capacitors are X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of 50V. For output capacitors, use X7R or X5R ceramic capacitors with a minimum capacitance of 22uF and a voltage rating of 25V.
  • To troubleshoot issues with the OCP feature, check the device's datasheet for the OCP threshold and response time. Verify that the input voltage and current are within the recommended specifications. Use an oscilloscope to monitor the device's output voltage and current during an OCP event.
  • Yes, the NCV57080BDR2G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process that ensures high reliability and low defect rates.
