NCV57090BDWR2G - onsemi

Description: High Peak Output Current (+6.5 A/-6.5 A); Short Propagation Delays with Accurate Matching; High Transient & Electromagnetic Immunity; 5 KVrms On-Chip Galvanic Isolation; Wide Bias Voltage Ranges and Input Voltage Range; Active Miller Clamp or Negative Gate Voltage or Split Outputs

Download NCV57090BDWR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

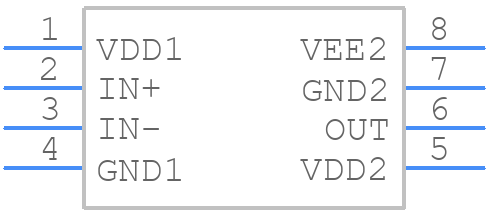

NCV57090BDWR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV57090BDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 WB CASE 751EW ISSUE A
click to zoom
3D Models
NCV57090BDWR2G - onsemi - 3D model - Small Outline Packages - SOIC8 WB CASE 751EW ISSUE A
click to zoom

NCV57090BDWR2G Details

  • Manufacturer Part Number:

    NCV57090BDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC8 WB

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EW

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8.38

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    12.4 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    5.85 mm

NCV57090BDWR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • The recommended input capacitors are X7R or X5R ceramic capacitors with a voltage rating of 10V or higher, and a capacitance value of 1uF to 10uF. The recommended output capacitors are also X7R or X5R ceramic capacitors with a voltage rating of 10V or higher, and a capacitance value of 1uF to 10uF.
  • To troubleshoot issues with the device's overcurrent protection feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is properly connected and that the output current is within the specified limits. Also, verify that the device is not overheating, which can trigger the overcurrent protection feature.
  • The recommended startup sequence for this device involves applying the input voltage, followed by the enable signal. The output voltage should be monitored to ensure it reaches the desired level before connecting the load.
