NCV57101DWR2G - onsemi

Description: High Current Output(±7 A) at Miller Plateau Voltages; Short Propagation Delays with Accurate Matching; DESAT with Soft Turn Off; Active Miller Clamp and Negative Gate Voltage; High Transient & Electromagnetic Immunity; 5 kV Galvanic Isolation

Download NCV57101DWR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

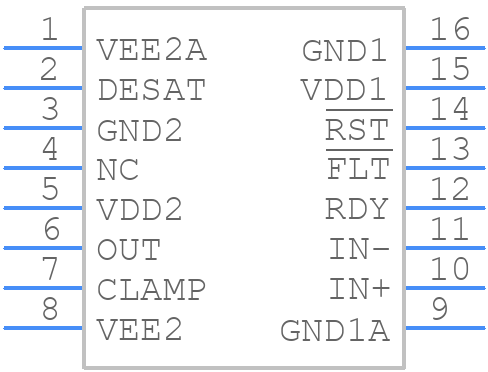

NCV57101DWR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV57101DWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 WB
click to zoom
3D Models
NCV57101DWR2G - onsemi - 3D model - Small Outline Packages - SOIC-16 WB
click to zoom

NCV57101DWR2G Details

  • Manufacturer Part Number:

    NCV57101DWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751G-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    7.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    32 V

  • Supply Voltage1-Min:

    11.7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    7.5 mm

NCV57101DWR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. Refer to onsemi's application note AND9093/D for more details.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or thermal management system. Also, ensure that the device is properly soldered and the PCB is designed to minimize thermal resistance.
  • The recommended input and output capacitors for the NCV57101DWR2G are 10uF and 22uF, respectively, with a voltage rating of 50V or higher. However, the actual capacitor values may vary depending on the specific application and operating conditions.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the feedback resistors are properly connected and that the output voltage is within the specified range. Also, verify that the device is not overheating and that the PCB layout is correct.
  • The recommended soldering profile for the NCV57101DWR2G is a peak temperature of 260°C, with a dwell time of 30-60 seconds. However, the actual soldering profile may vary depending on the specific PCB material and assembly process.
