Description:High Peak Output Current (±6.5 A, ±3.5 A); 2.5 or 5 kVrms Galvanic Isolation from Input to each Output and 1.5 kVrms Differential Voltage between Output Channels; Tight UVLO Thresholds on all Power Supplies; 3.3 V, 5 V, and 15 V Logic Input; Short Propagation Delays with Accurate Matching; Configurable as a Dual Low−Side or Dual High−Side or Half−Bridge Driver; Programmable Overlap or Dead Time control Programmable Overlap or Dead Time control; Disable Pin to Turn Off Outputs for Power Sequencing; ANB Funct
A good PCB layout for the NCV57252DWR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces connecting the device to the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency signals.
To ensure the NCV57252DWR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and that the input voltage and output current are within the recommended operating ranges.
The recommended input capacitor value for the NCV57252DWR2G is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended.
The NCV57252DWR2G is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure that you provide adequate cooling and follow the recommended thermal design guidelines.
To troubleshoot issues with the NCV57252DWR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Check for signs of overheating, and ensure that the device is not exposed to excessive voltage or current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV57252DWR2G Overview

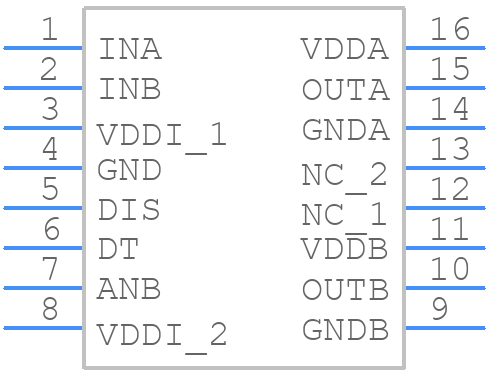

Use the download button to access the NCV57252DWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV57,
or try a keyword search, such as MOSFET Drivers
