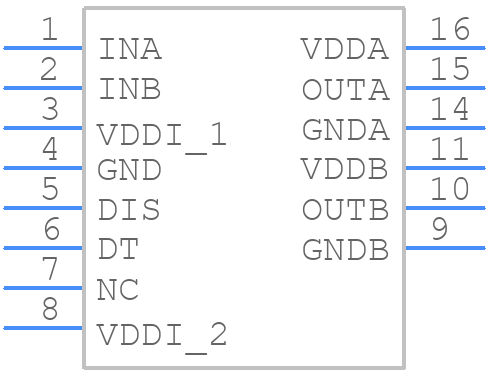

NCV57540DWKR2G - onsemi

NCV57540DWKR2G Details

• Manufacturer Part Number:

  NCV57540DWKR2G

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC−16 WB LESS PINS 12 & 13

• Package Description:

  SOIC-16/14 PIN

• Manufacturer Package Code:

  752AJ

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  26 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  8

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED IGBT DRIVER

• JESD-30 Code:

  R-PDSO-G14

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  6.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14/16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  20 V

• Supply Voltage-Min:

  2.4 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  32 V

• Supply Voltage1-Min:

  11.5 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Gold/Palladium (Ni/Au/Pd)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.09 µs

• Turn-on Time:

  0.09 µs

• Width:

  7.5 mm
