Description:1% max accuracy over line, load, and temperature; 195mV maximum dropout at the full 3.0 A load; 0.8 V to 5.5 V input voltage; Fast Transient Response; Programmable Soft-Start; Available in QFNW20 4x4 mm package; Low Noise, 6uVrms typically
A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using thermal interface materials and ensure that the PCB is designed to withstand high temperatures.
The recommended soldering conditions for the NCV59745AMW180TAG are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering temperature profile that follows the JEDEC J-STD-020 standard.
To handle ESD protection during handling and assembly, it's recommended to follow standard ESD precautions, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, ensure that the device is stored in its original packaging or in an ESD-safe container when not in use.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to follow the recommended operating conditions to ensure reliable operation and to avoid voiding the device warranty.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV59745AMW180TAG Overview

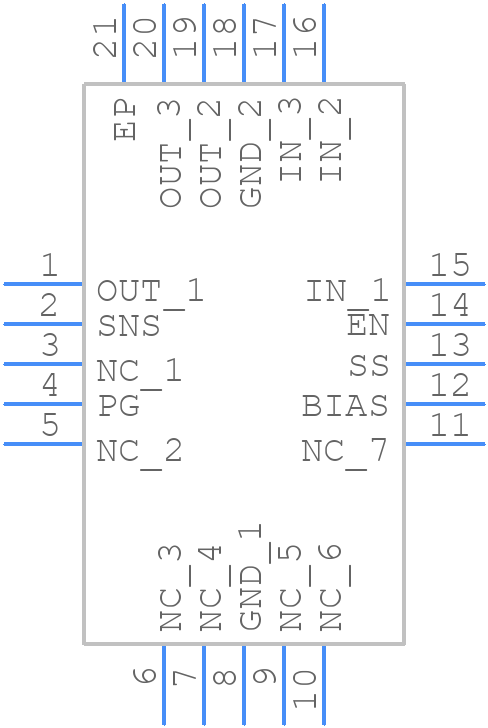

Use the download button to access the NCV59745AMW180TAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV59,
or try a keyword search, such as Linear Regulator ICs
