NCV6356QMTWTXG - onsemi

Description: Input Voltage Range from 2.5 V to 5.5 V; Up to 2.4 MHz Switching Frequency; Enabling with pins or I2C; I2C access in off mode; Best in class Transient / Ripple; 4 Level Thermal Warnings

Download NCV6356QMTWTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

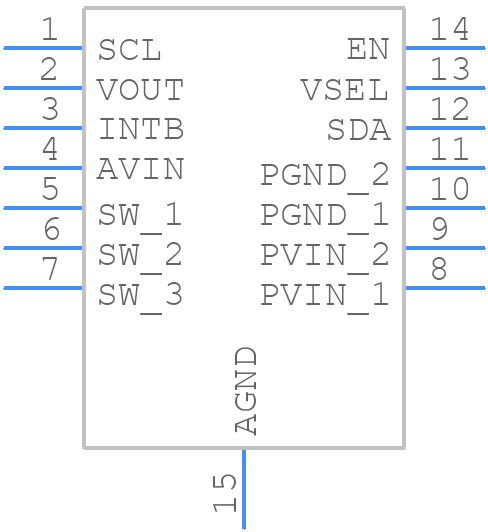

NCV6356QMTWTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV6356QMTWTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn
click to zoom
3D Models
NCV6356QMTWTXG - onsemi - 3D model - Small Outline No-lead - dfn
click to zoom

NCV6356QMTWTXG Details

  • Manufacturer Part Number:

    NCV6356QMTWTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW-14

  • Manufacturer Package Code:

    511CM

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-N10

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    9.6 A

  • Output Voltage-Max:

    1.4 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    10 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2640 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV6356QMTWTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design.
  • To ensure EMC compliance, follow the recommended PCB layout and grounding scheme, use a common-mode choke or ferrite bead on the input lines, and consider adding shielding or a metal enclosure to the design. Additionally, consult with an EMC expert or use simulation tools to optimize the design.
  • The datasheet specifies the maximum allowed voltage ratings, but it's essential to consider the voltage transient tolerance. As a general rule, the device can withstand voltage transients up to 1.5 times the maximum rated voltage for a duration of 100 ms. However, it's recommended to consult with an onsemi application engineer for specific guidance.
  • The NCV6356QMTWTXG has specific power sequencing requirements to ensure proper operation. The datasheet provides guidelines, but it's crucial to carefully review the power-up and power-down sequences to avoid damage or malfunction. Consider using a power management IC or a dedicated power sequencing controller to simplify the design.
  • The datasheet specifies the recommended operating temperature range, but it's essential to consider the device's thermal derating. The device can operate up to 150°C, but the performance may degrade above 125°C. Consult with an onsemi application engineer for specific guidance on thermal management.
