NCV6357MTWATXG - onsemi

Description: Input Voltage Range from 2.5 V to 5.5 V; Up to 2.4 MHz Switching Frequency; Enabling with pins or I2C; I2C access in off mode; Best in class Transient / Ripple; 4 Level Thermal Warnings

Download NCV6357MTWATXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

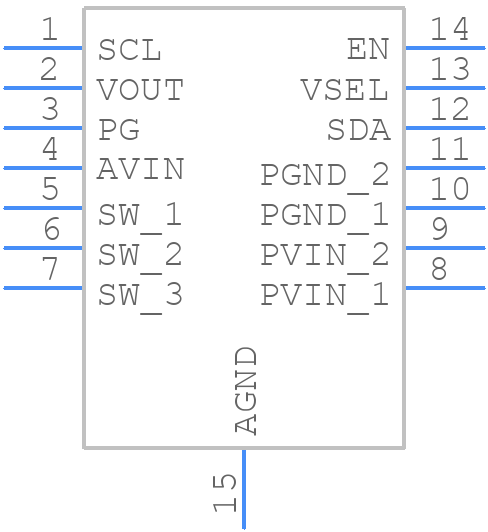

NCV6357MTWATXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV6357MTWATXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - dfn
click to zoom
3D Models
NCV6357MTWATXG - onsemi - 3D model - Small Outline No-lead - dfn
click to zoom

NCV6357MTWATXG Details

  • Manufacturer Part Number:

    NCV6357MTWATXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW-14

  • Package Description:

    WDFNW-14

  • Manufacturer Package Code:

    511CM

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    25 mA

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2640 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV6357MTWATXG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal shield to reduce the junction temperature.
  • The recommended soldering conditions for NCV6357MTWATXG are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also recommended to use a solder with a melting point above 217°C.
  • To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, handle the devices by the body or pins, and avoid touching the pins or leads. Additionally, use ESD-protected packaging and follow proper storage and handling procedures.
  • Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the specified voltage, current, and temperature ranges to guarantee reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV6357MTWATXG Overview

Use the download button to access the NCV6357MTWATXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV63, or try a keyword search, such as Switching Regulator or Controllers
