NCV7329MW0R2G - onsemi

Description: LIN−Bus Transceiver ♦ Compliant to ISO 17987−4 (Backwards Compatible to LIN Specification rev. 2.x, 1.3) and SAE J2602 ♦ Bus Voltage ?42 V ♦ Transmission Rate 1 kbps to 20 kbps ♦ TxD Timeout Function ♦ Integrated Slope Control; Protection ♦ Thermal Shutdown ♦ Undervoltage Protection ♦ Bus Pins Protected Against Transients in an Automotive Environment; Modes ♦ Normal Mode: LIN Transceiver Enabled, Communication via the Bus is Possible ♦ Sleep Mode: LIN Transceiver Disabled, the Consumption from VBB is Minimi

Download NCV7329MW0R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

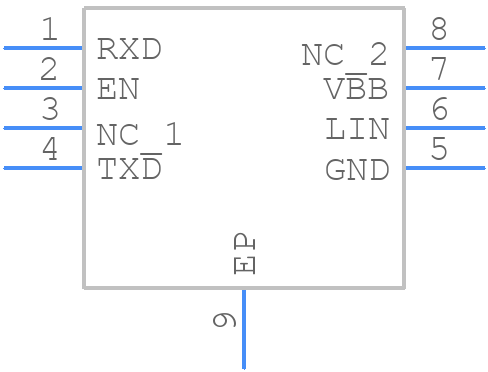

NCV7329MW0R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV7329MW0R2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AB
click to zoom
3D Models
NCV7329MW0R2G - onsemi - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AB
click to zoom

NCV7329MW0R2G Details

  • Manufacturer Part Number:

    NCV7329MW0R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    507AB

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.8

  • Data Rate:

    20 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV7329MW0R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. Ensure that the thermal pad is connected to a large copper area to reduce thermal resistance.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C.
  • Use a pi-filter or a common-mode choke to reduce electromagnetic interference (EMI). Add capacitors between the input and output pins to ground to filter out high-frequency noise. Ensure that the PCB layout is designed to minimize loop areas and reduce radiation.
  • Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage from voltage surges and excessive current. Use a voltage regulator or a TVS diode to clamp the input voltage, and add a current-sensing resistor to detect overcurrent conditions.
  • Use a 4-wire Kelvin connection to measure the device's voltage and current accurately. Ensure that the test equipment is calibrated and configured correctly to prevent measurement errors. Use a thermal camera or an infrared thermometer to measure the device's temperature.
