NCV7340D13R2G - onsemi

Description: Last Shipments - CAN Transceiver, High Speed, Low Power

Download NCV7340D13R2G Model

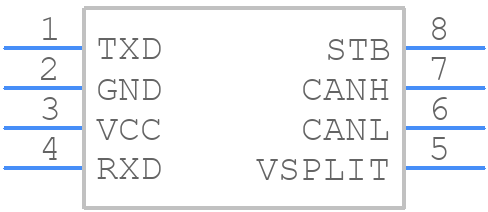

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7340D13R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 CASE 751AZ ISSUE B
click to zoom
3D Models
NCV7340D13R2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 CASE 751AZ ISSUE B
click to zoom

NCV7340D13R2G Details

  • Manufacturer Part Number:

    NCV7340D13R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AZ

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9276 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7272 mm

  • Supply Current-Max:

    0.075 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.937 mm

NCV7340D13R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the device away from heat sources and ensure good airflow.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow. Also, consider derating the device's power dissipation according to the temperature derating curve in the datasheet.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
  • Yes, the NCV7340D13R2G can be used in switching regulator applications. However, ensure that the device is properly bypassed and decoupled, and that the switching frequency is within the recommended range.
  • Check the input voltage, output load, and feedback resistors for correct values and connections. Also, verify that the device is properly decoupled and that there are no oscillations or noise on the output.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7340D13R2G Overview

Use the download button to access the NCV7340D13R2G schematic symbol, PCB footprint, and 3D model.
