NCV7344MW3R2G - onsemi

Description: Compliant with ISO 11898−2:2016; CAN FD timing specified up to 5 Mbps; VIO pin on NCV7344−3 Version Allowing Direct Interfacing with 3 V to 5 V Microcontrollers; Very Low Current Standby Mode with Wake−up via the Bus; Low Electromagnetic Emission (EME) and High Electromagnetic Immunity; Very Low EME without Common−mode (CM) Choke; No Disturbance of the Bus Lines with an Un−powered Node; Transmit Data (TxD) Dominant Timeout Function; Under All Supply Conditions the Chip Behaves Predictably; Very High ESD Rob

Download NCV7344MW3R2G Model

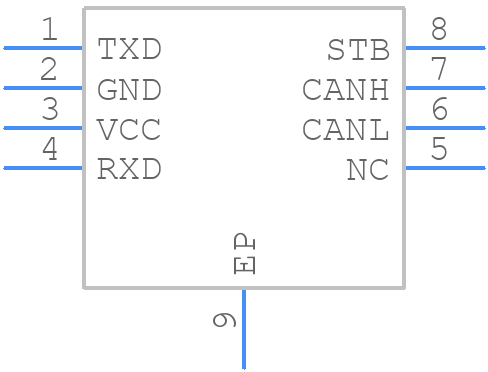

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7344MW3R2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8
click to zoom
3D Models
NCV7344MW3R2G - onsemi  - 3D model - Small Outline No-lead - DFNW8
click to zoom

NCV7344MW3R2G Details

  • Manufacturer Part Number:

    NCV7344MW3R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFN-8

  • Manufacturer Package Code:

    507AB

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Data Rate:

    5000 Mbps

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV7344MW3R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Use a heat sink with a thermal resistance of 10°C/W or lower, and ensure good airflow around the device. Also, consider derating the output current and voltage according to the temperature derating curve in the datasheet.
  • The maximum allowed voltage on the EN pin is 6V. To protect it from overvoltage, use a voltage divider or a zener diode clamp circuit to limit the voltage to 6V or less.
  • Use a shielded inductor, keep the switching node (SW) as short as possible, and use a common-mode choke or ferrite bead on the output cables. Also, ensure good PCB layout practices, such as separating the power and signal traces.
  • Use a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 4.7uF to 10uF, depending on the input voltage and output current requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7344MW3R2G Overview

Use the download button to access the NCV7344MW3R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV73, or try a keyword search, such as Network Interfaces
