The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 2x2 mm, using a 2-ounce copper layer, and ensuring a solid ground plane underneath the device. Additionally, it's recommended to use thermal vias to connect the thermal pad to the ground plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, ensure proper heat sinking, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
The NCV7381BDP0R2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. The device can withstand ESD pulses up to 2 kV according to the Human Body Model (HBM) and 200 V according to the Machine Model (MM).
Yes, the NCV7381BDP0R2G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a process that ensures high reliability and low defect rates.
The recommended soldering profile for the NCV7381BDP0R2G involves a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a total process time of 60-120 seconds. It's essential to follow the recommended soldering profile to ensure reliable assembly and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7381BDP0R2G Overview

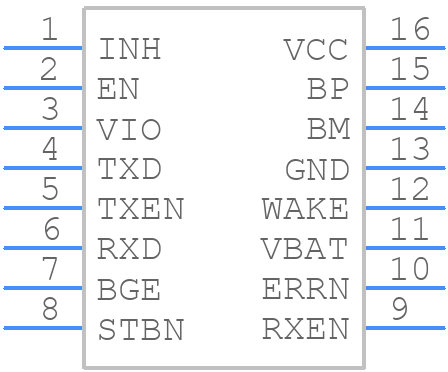

Use the download button to access the NCV7381BDP0R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV73,
or try a keyword search, such as Network Interfaces
