Description:LIN-Bus Transceiver • Compliant to ISO 17987-4 (Backwards Compatible to LIN Specification rev. 2.x, 1.3) and SAE J2602 • Bus Voltage ±42 V • Transmission Rate 1 kbps to 20 kbps • TxD Timeout function • Integrated Slope Control; Protection • Thermal Shutdown • Undervoltage Detection • Bus Pins Protected Against Transients in an Automotive Environment; Modes • Normal Mode: LIN Transceiver Enabled, Communication via the Bus is Possible • Sleep Mode: LIN Transceiver Disabled, the Consumption from VBB is Minimiz
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
The NCV7422MW0R2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
To troubleshoot issues with the overcurrent protection feature, check the device's datasheet for the expected behavior, verify that the input voltage and current are within the recommended operating conditions, and use an oscilloscope to monitor the device's behavior during fault conditions.
For high-reliability applications, consider using a redundant design, implementing fault detection and correction mechanisms, and following a rigorous testing and validation process to ensure the device meets the required reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7422MW0R2G Overview

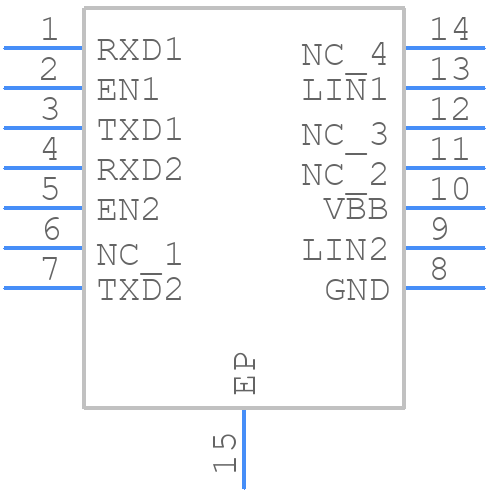

Use the download button to access the NCV7422MW0R2G schematic symbol, PCB footprint, and 3D model.
