NCV7428D15R2G - onsemi

Description: 3.3 V or 5 V VOUT Supply depending on the Version from a Low−drop Voltage Regulator; LIN Transceiver; Protection and Monitoring Functions; These are Pb−Free Devices; Control Logic

Download NCV7428D15R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

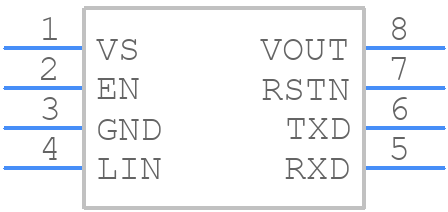

NCV7428D15R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV7428D15R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom

NCV7428D15R2G Details

  • Manufacturer Part Number:

    NCV7428D15R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751AZ

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    7

NCV7428D15R2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV7428D15R2G is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The recommended input capacitor value for the NCV7428D15R2G is 1uF to 10uF, with a voltage rating of 25V or higher.
  • Yes, the NCV7428D15R2G is suitable for high-reliability applications, as it is built with a robust design and has undergone rigorous testing and qualification.
  • The power dissipation of the NCV7428D15R2G can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV7428D15R2G Overview

Use the download button to access the NCV7428D15R2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV74, or try a keyword search, such as Other Telecom ICs
