NCV7471BDQ5R2G - onsemi

Description: Control Logic - Ensures safe power−up sequence and the correct reaction to different supply conditions - Controls mode transitions including the power management and wakeup treatment − bus wakeups, local wakeups (via WU pin) and cyclic wakeups (through the on−chip timer) - Generates reset and interrupt requests; Serial Peripheral Interface - Operates with 16−bit frames - Ensures communication with the ECU’s microcontroller unit - Mode settings, chip status feedback and watchdog are accessible through eight

Download NCV7471BDQ5R2G Model

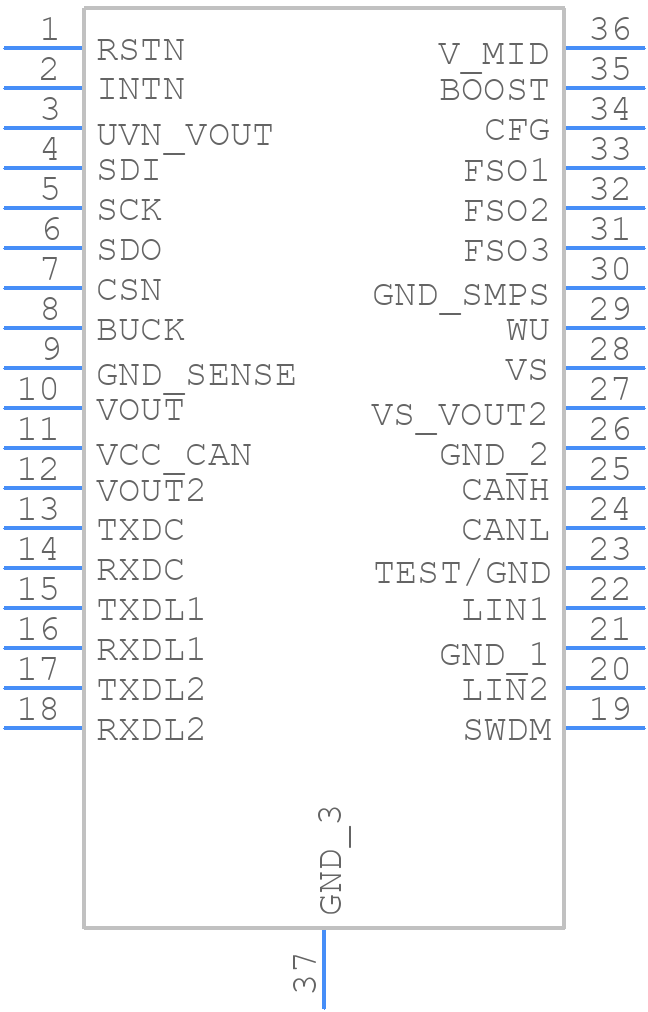

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7471BDQ5R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV7471BDQ5R2G
click to zoom
3D Models
NCV7471BDQ5R2G - onsemi  - 3D model - Small Outline Packages - NCV7471BDQ5R2G
click to zoom

NCV7471BDQ5R2G Details

  • Manufacturer Part Number:

    NCV7471BDQ5R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP-36 EP

  • Package Description:

    SSOP-36

  • Manufacturer Package Code:

    940AB

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    36

  • Number of Transceivers:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    CAN FD, LIN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

NCV7471BDQ5R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Also, ensure that the device is properly cooled, and the thermal design is optimized.
  • The NCV7471BDQ5R2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
  • To troubleshoot issues with the overcurrent protection feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is properly connected and that the device is not overheating. Also, verify that the overcurrent threshold is set correctly.
  • When paralleling multiple devices, ensure that each device has its own sense resistor and that the output currents are properly balanced. Also, consider the thermal design and ensure that the devices are properly cooled to prevent overheating.
