Part Image

NCV760040MWTXG - onsemi

Description: 4 High−side Channels; 1.2 A Peak Current Per Channel; RDS(ON) = 500 mOhm Typ., 1.0 Ohm Max.; Low Quiescent Current in Sleep Mode; Status Reporting via I2C and via Open−drain Fault Pin; Current Sense Readout via I2C and via CS Pin; AEC-Q100 qualified

Download NCV760040MWTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

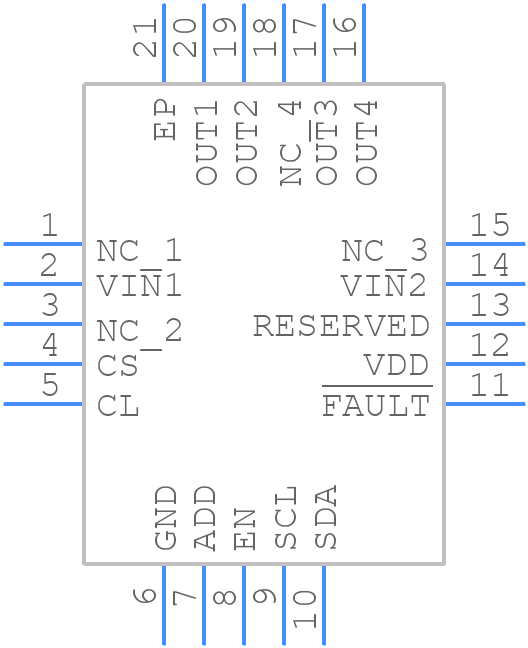

Symbol
NCV760040MWTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV760040MWTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFNW20 3.5x3.5, 0.5P CASE 484AV ISSUE A
click to zoom
3D Models
NCV760040MWTXG - onsemi - 3D model - Quad Flat No-Lead - QFNW20 3.5x3.5, 0.5P CASE 484AV ISSUE A
click to zoom

NCV760040MWTXG Details

  • Manufacturer Part Number:

    NCV760040MWTXG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV760040MWTXG Overview

Use the download button to access the NCV760040MWTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV76, or try a keyword search, such as Peripheral Drivers
