TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Driver Number of Bits:
8
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e4
Length:
10.3 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
36
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SINK
Output Current-Max:
0.35 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
2.65 mm
Supply Current-Max:
3 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
3.15 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
28 V
Supply Voltage1-Min:
5.5 V
Surface Mount:
YES
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
100 µs
Turn-on Time:
50 µs
Width:
7.5 mm
NCV7608DQR2G Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within the recommended temperature range, use a heat sink or thermal pad, and consider using a thermal interface material to improve heat transfer.
The recommended input capacitor is a 10uF ceramic capacitor, and the recommended output capacitor is a 22uF ceramic capacitor. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
To troubleshoot issues with the device, check the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or burning smells. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the NCV7608DQR2G is qualified for automotive and high-reliability applications. However, it is essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability and quality standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7608DQR2G Overview

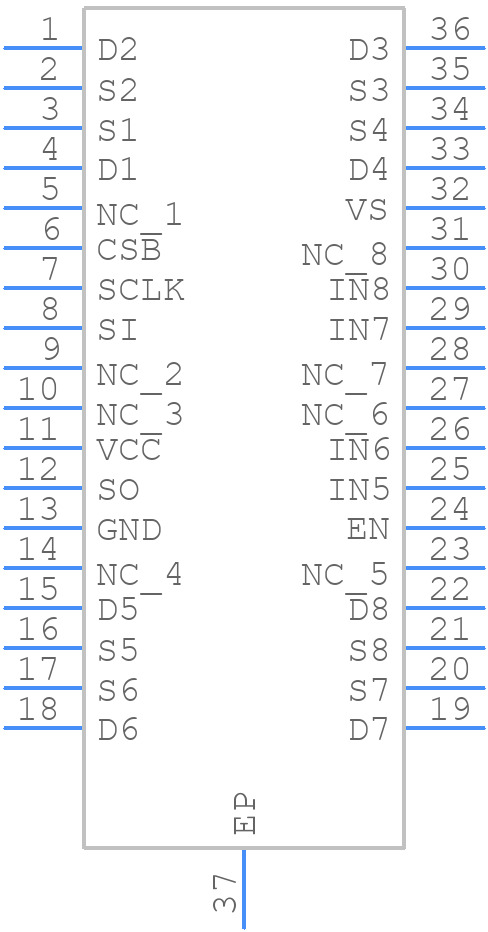

Use the download button to access the NCV7608DQR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV76,
or try a keyword search, such as Peripheral Drivers
