Description:Constant Current Output for LED String Drive; External Bipolar Device for Wide Current Range Flexibility - With BCP56 Transistor, Can Drive 8 Strings Concurrently (ref. Datasheet Info); External Programming Current Resistor; Pulse Width Modulation (PWM) Control; Open LED String Diagnostic; Short−Circuit LED string Diagnostic; Multiple LED String Control; Overvoltage Set Back Power Limitation; Negative Temperature Coefficient Current Control Option; AEC Q100 Qualified
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad connected to the ground plane.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and avoid overheating the device. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The recommended soldering conditions for NCV7691D10R2G are: peak temperature 260°C, time above 217°C 30 seconds, and time above 183°C 60 seconds. Use a soldering iron with a temperature range of 350°C to 400°C, and ensure that the soldering process is completed within 3 seconds.
During storage and shipping, handle the device by the body, not the leads. Avoid bending or flexing the leads, and store the device in a dry, cool place away from direct sunlight. Use anti-static packaging materials to prevent electrostatic discharge (ESD) damage.
To handle moisture-sensitive devices like NCV7691D10R2G, follow these precautions: store the device in a dry, cool place away from direct sunlight; use a dry, nitrogen-filled package or a moisture barrier bag; and bake the device at 125°C for 24 hours before use if it has been exposed to moisture.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV7691D10R2G Overview

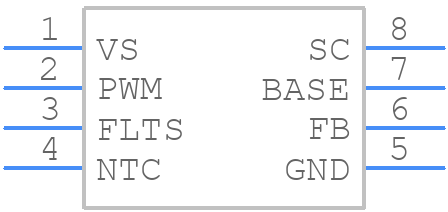

Use the download button to access the NCV7691D10R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV76,
or try a keyword search, such as Switching Regulator or Controllers
