NCV7692D10R2G - onsemi

Description: LED Driver IC 1 Output Power Switch PWM Dimming 8-SOIC

Download NCV7692D10R2G Model

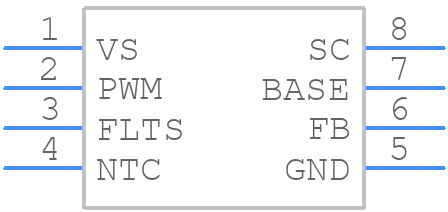

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7692D10R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom
3D Models
NCV7692D10R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom

NCV7692D10R2G Details

  • Manufacturer Part Number:

    NCV7692D10R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751AZ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    24

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV7692D10R2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCV7692D10R2G is -40°C to 150°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input voltage should be within the recommended range, and the device should be operated within the specified temperature range.
  • The recommended input capacitor value for the NCV7692D10R2G is 1uF to 10uF, with a voltage rating of at least 10V.
  • Yes, the NCV7692D10R2G is suitable for high-reliability applications, such as automotive and industrial systems, due to its high temperature rating and robust design.
  • The power dissipation of the NCV7692D10R2G can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
