NCV7719DQR2G - onsemi

Description: Low Quiescent Current Sleep Mode; HighSide and LowSide Drivers Connected in a HalfBridge Configuration; Integrated Freewheeling Protection (LS and HS); 0.55 A Peak Current; RDS(on) = 1 ohm (typ); Overcurrent Protection; Overtemperature Protection; Under Load Detection; Discriminated Fault Reporting; 16Bit Frame Detection; Daisy Chain Compatible with Multiple of 8 bit Devices; 5 MHz SPI Control; Compliance with 5 V and 3. 3 V Systems; Undervoltage and Overvoltage Lockout

Download NCV7719DQR2G Model

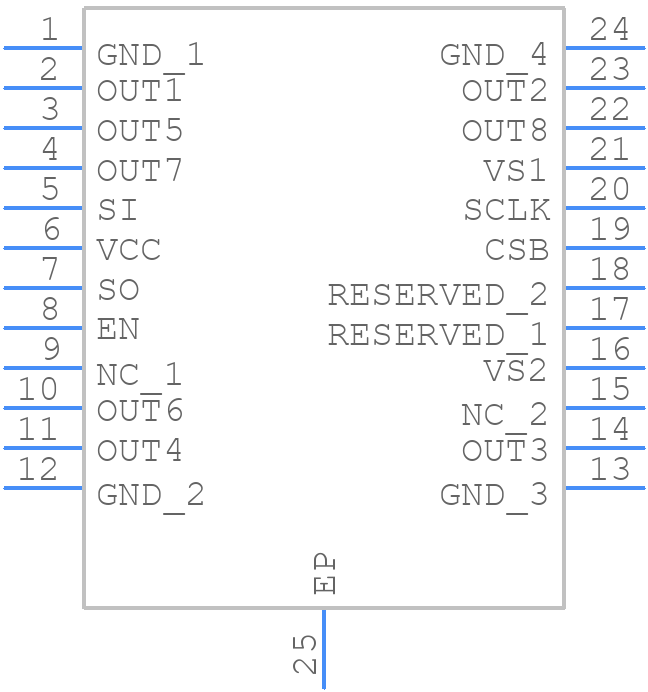

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7719DQR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SSOP24 NB EP CASE 940AK ISSUE O
click to zoom
3D Models
NCV7719DQR2G - onsemi  - 3D model - Small Outline Packages - SSOP24 NB EP CASE 940AK ISSUE O
click to zoom

NCV7719DQR2G Details

  • Manufacturer Part Number:

    NCV7719DQR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP-24 NB EP

  • Package Description:

    SSOP-24

  • Manufacturer Package Code:

    940AK

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.64 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    8

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    5.5 V

  • Supply Voltage1-Nom:

    13.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL GOLD PALLADIUM

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    6 µs

  • Turn-on Time:

    13 µs

  • Width:

    3.9 mm
