NCV7755DQR2G - onsemi

Description: Octal channel controlled via SPI or drive pins; Two Input Pins with Mapping for PWM Operation; Limp Home Mode with Auto−retry; Supports Cranking Voltage of 3V Minimum on VS; Over Current Protection; Open Load Protection; Power Supply Monitoring; Reverse Polarity Protection; Loss of Ground Protection

Download NCV7755DQR2G Model

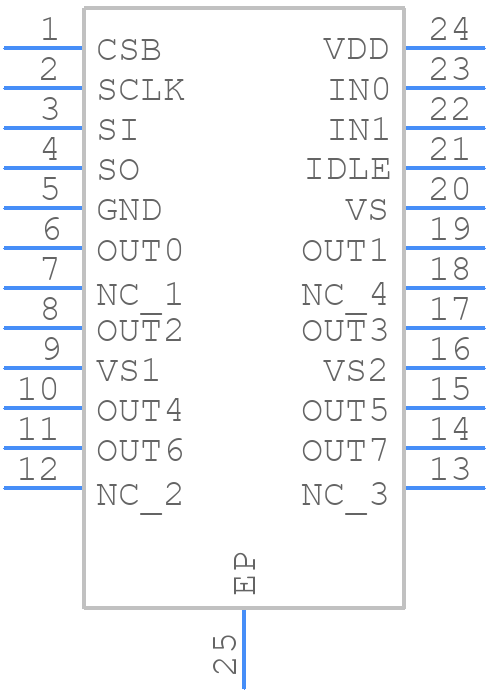

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV7755DQR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SSOP24
click to zoom
3D Models
NCV7755DQR2G - onsemi  - 3D model - Small Outline Packages - SSOP24
click to zoom

NCV7755DQR2G Details

  • Manufacturer Part Number:

    NCV7755DQR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP-24 NB EP

  • Package Description:

    SSOP-24

  • Manufacturer Package Code:

    940AK

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2020-01-24

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Built-in Protections:

    TRANSIENT; THERMAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.64 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.33 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    8.7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    12 µs

  • Turn-on Time:

    8 µs

  • Width:

    3.9 mm

NCV7755DQR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • The NCV7755DQR2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. A minimum of 2 kV human body model (HBM) and 200 V machine model (MM) ESD protection is recommended.
  • Yes, the NCV7755DQR2G is AEC-Q100 qualified and suitable for automotive applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly validated and tested according to the specific automotive requirements.
  • The recommended soldering profile for the NCV7755DQR2G involves a peak temperature of 260°C, with a dwell time of 30-60 seconds above 220°C. A soldering profile with a gradual temperature ramp-up and cool-down is recommended to minimize thermal stress.
