NCV78514PA0R2G - onsemi

Description: Fixed Switching Frequency at 400 kHz; Input Operating Range from 5 V – 21 V; Warm Start Management below 9 V; Withstands Load Dump up to 45 V; Output Voltage Range up to 60 V; External Programmable Current 200 mA − 1500 mA; Pulse Width Modulation from 80 Hz to 600 Hz; LED Current Dimming Frequency 400 Hz; External NTC / PTC for LED−temperature; Spread Spectrum; Status and Error Mode Handling; Support for MCU Less Application; Integrated Derating Mechanisms; AEC−Q100 Qualified and PPAP Capable

Download NCV78514PA0R2G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NCV78514PA0R2G model

Email notifications will be applied after download.

Send part feedback

Symbol

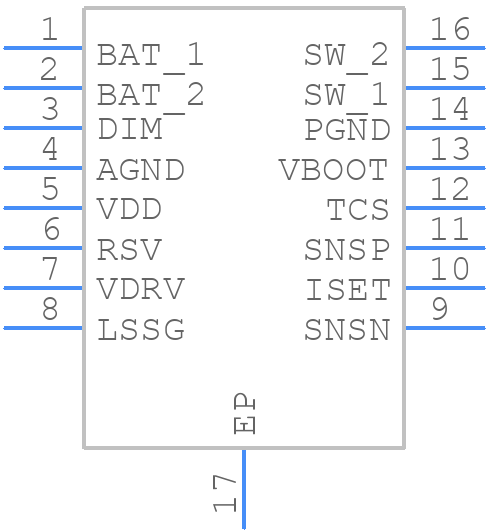

NCV78514PA0R2G - onsemi - PCB symbol

PCB Footprints

NCV78514PA0R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 16 4.4*5

3D Models

NCV78514PA0R2G - onsemi - 3D model - Small Outline Packages - TSSOP 16 4.4*5

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCV78514PA0R2G
Part Number NCV78514PA0R2G
Manufacturer onsemi
Pin Count 17
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP 16 4.4*5
Released Date Sep 7, 2024
Last Modified Date Jan 22, 2025 4:53 PM UTC
