NCV78703MW0AR2G - onsemi

Description: Single Chip; Multiphase Booster; High Overall Efficiency; Minimum of External Components; Active Input Filter with Low Current Ripple from Battery; Integrated Boost Controller; Programmable Input Current Limitation; High Operating Frequencies to Reduce Inductor Sizes; Low EMC Emission; PCB Trace for Current Sense Shunt Resistor is Possible; SPI Interface for Dynamic Control of System Parameters; Fail Save Operating (FSO) Mode, Stand−Alone Mode; Integrated Failure Diagnostic

Download NCV78703MW0AR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

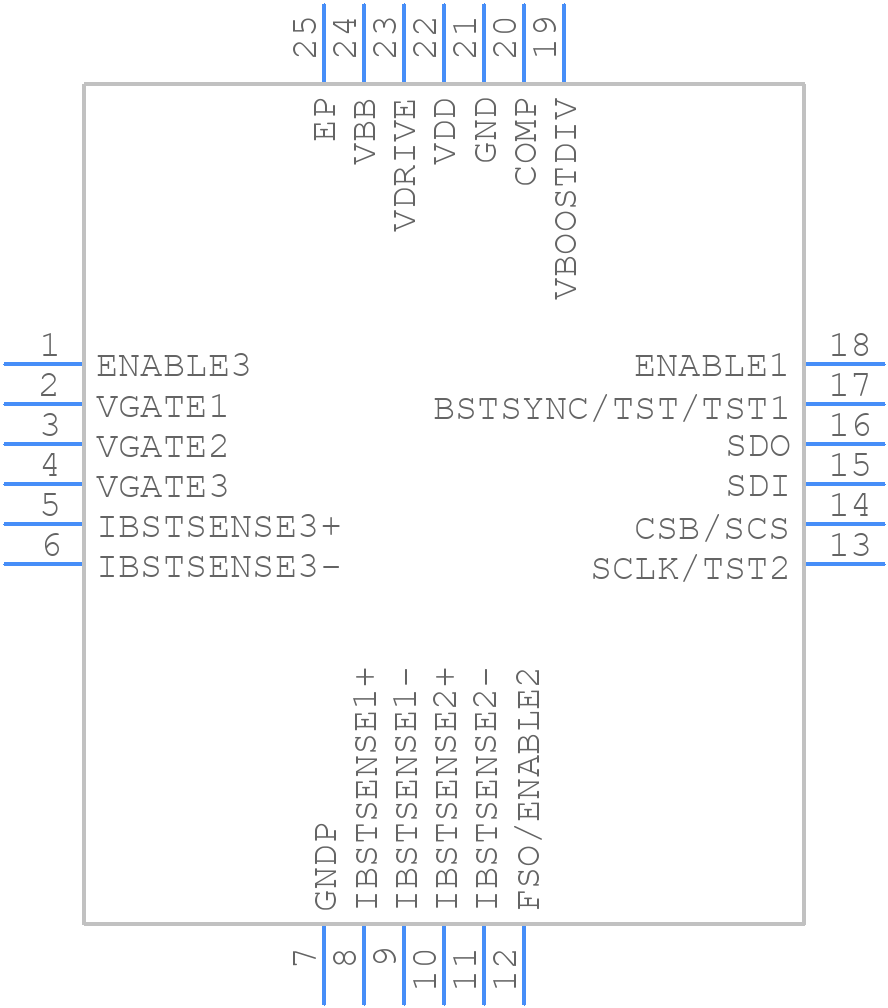

NCV78703MW0AR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV78703MW0AR2G - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 5x5, 0.65P CASE 485CS ISSUE O
click to zoom
3D Models
NCV78703MW0AR2G - onsemi - 3D model - Quad Flat No-Lead - QFN24 5x5, 0.65P CASE 485CS ISSUE O
click to zoom

NCV78703MW0AR2G Details

  • Manufacturer Part Number:

    NCV78703MW0AR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFNW-24

  • Manufacturer Package Code:

    484AF

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • Interface IC Type:

    LED DISPLAY DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV78703MW0AR2G Overview

Use the download button to access the NCV78703MW0AR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV78, or try a keyword search, such as Display Drivers
