Description:Two LED Strings up to 60 V; Single Chip Boost−Buck Solution; High Current Capability up to 1.6 A DC per Output; High Overall System Efficiency; Minimum of External Components; Active Input Filter with Low Current Ripple from Battery; Integrated Switched Mode Buck Current Regulator; Integrated Boost Current−mode Controller; Programmable Input Current Limitation; Average Current Regulation Through the LEDs; High Operating Frequencies to Reduce Inductor Sizes; Integrated PWM Dimming with Wide Frequency Range;
A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
The recommended soldering conditions for the NCV78763MW4R2G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It's also important to follow the JEDEC J-STD-020 standard for reflow soldering.
Yes, the NCV78763MW4R2G is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the relevant automotive standards.
To troubleshoot issues related to the device's overcurrent protection, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is correctly connected and that the output current is within the specified limits. Also, verify that the device is not overheating, which can trigger the overcurrent protection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV78763MW4R2G Overview

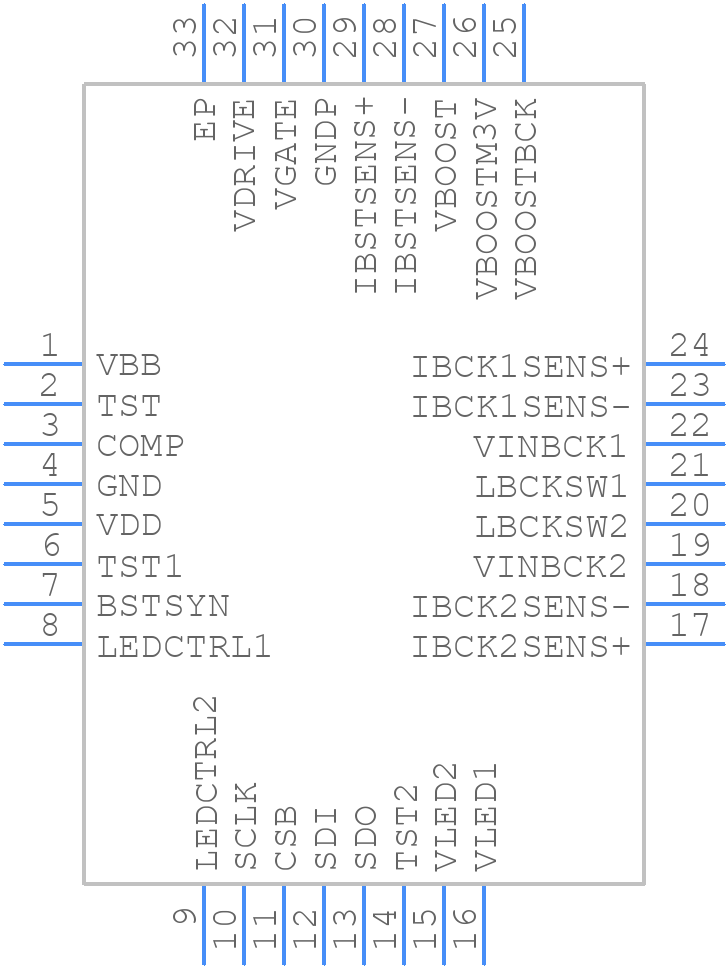

Use the download button to access the NCV78763MW4R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV78,
or try a keyword search, such as Display Drivers
