NCV78964PA0R2G - onsemi

Description: Designed for Small Booster Output Capacitor; Low EMC Emission; Single Chip 2 Phase Booster and Synchronous Dual Buck Solution; Stand−Alone/Limp Home Mode; 2 LED Strings up-to 60V, High Current Capability 1.6 A per Output; Switched Mode Synchronous Bucks with Average Current Regulation through the LEDs, Programmable Buck Frequency; Independent Supply Voltage for Each Buck Channel; Buck Constant Voltage Mode Available; Booster Shunt-less Operation; Built−in Programmable Booster Soft−Start; Superior Stability

Download NCV78964PA0R2G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NCV78964PA0R2G model

Email notifications will be applied after download.

Send part feedback

Symbol

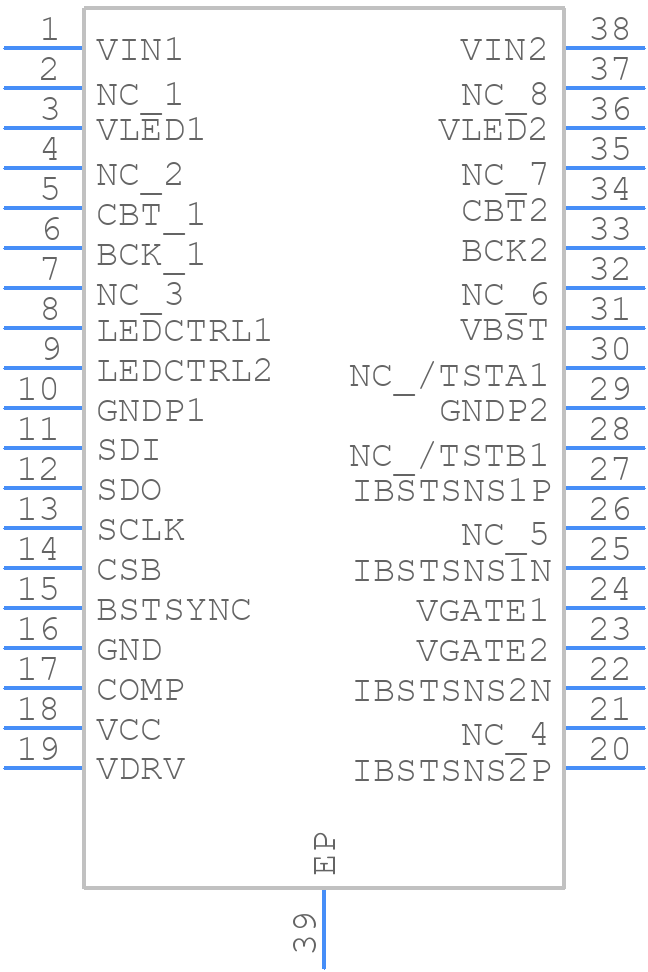

NCV78964PA0R2G - onsemi - PCB symbol
