NCV78964PA1R2G - onsemi

Description: Designed for Small Booster Output Capacitor; Low EMC Emission; Single Chip 2 Phase Booster and Synchronous Dual Buck Solution; Stand??Alone/Limp Home Mode; 2 LED Strings up-to 60V, High Current Capability 1.6 A per Output; Switched Mode Synchronous Bucks with Average Current Regulation through the LEDs, Programmable Buck Frequency; Independent Supply Voltage for Each Buck Channel; Buck Constant Voltage Mode Available; Booster Shunt-less Operation; Built??in Programmable Booster Soft??Start; Superior Stabili

Download NCV78964PA1R2G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NCV78964PA1R2G model

Email notifications will be applied after download.

Send part feedback

Symbol

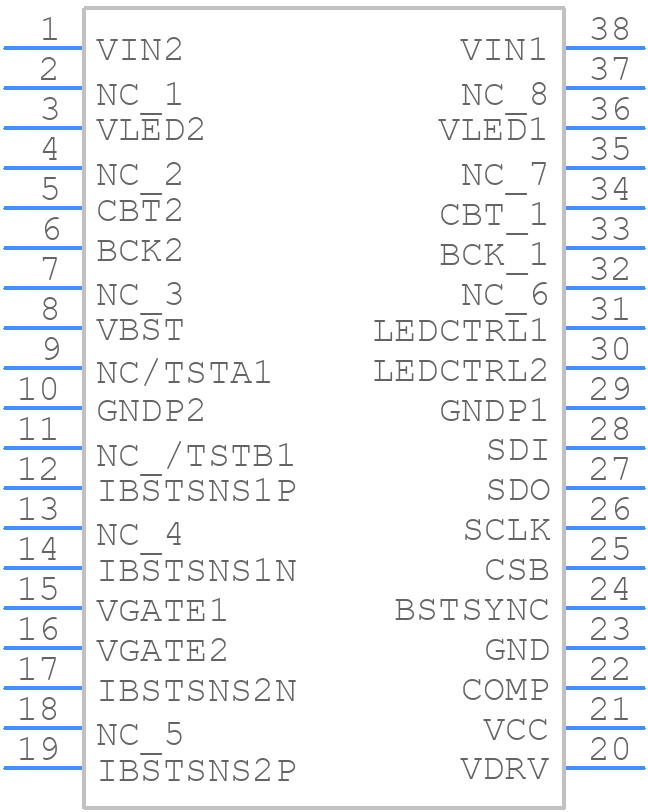

NCV78964PA1R2G - onsemi - PCB symbol

PCB Footprints

NCV78964PA1R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP38 TEP 9.7x4.4 CASE 948BX ISSUE O

3D Models

NCV78964PA1R2G - onsemi - 3D model - Small Outline Packages - TSSOP38 TEP 9.7x4.4 CASE 948BX ISSUE O

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCV78964PA1R2G
Part Number NCV78964PA1R2G
Manufacturer onsemi
Pin Count 38
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP38 TEP 9.7x4.4 CASE 948BX ISSUE O
Released Date Nov 21, 2025
Last Modified Date Nov 21, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

NCV78964PA1R2G Details

Manufacturer Part Number:
NCV78964PA1R2G
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
Interface IC Type:
LED DISPLAY DRIVER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NCV78964PA1R2G Overview

Use the download button to access the NCV78964PA1R2G schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NCV78, or try a keyword search, such as Display Drivers
