NCV8133BMX100TCG - onsemi

Description: Ultra-Low Dropout of Typ. 140mV; Fixed Output Voltage options from 0.8V to 2.1V and Adjustable ; 140 mV typical dropout at the full 500 mA load.; Guaranteed Output Current from 0mA to 500mA; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 500mA; Output Active Discharge option available

Download NCV8133BMX100TCG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

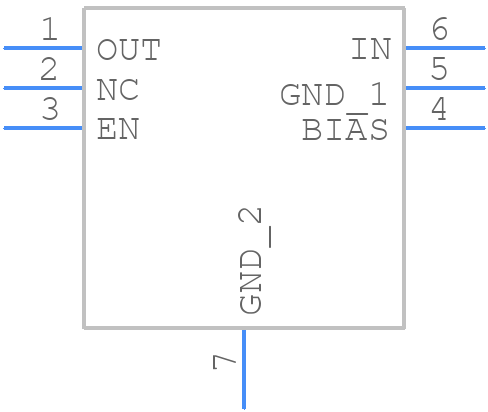

NCV8133BMX100TCG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8133BMX100TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - XDFN6 1.20x1.20, 0.40P
click to zoom
3D Models
NCV8133BMX100TCG - onsemi - 3D model - Small Outline No-lead - XDFN6 1.20x1.20, 0.40P
click to zoom

NCV8133BMX100TCG Details

  • Manufacturer Part Number:

    NCV8133BMX100TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    XDFN-6

  • Package Description:

    XDFN-6

  • Manufacturer Package Code:

    711AT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.14 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5 V

  • Input Voltage-Min:

    1.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    1.2 mm

  • Line Regulation-Max:

    0.037%

  • Load Regulation-Max:

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    1.02 V

  • Output Voltage1-Min:

    0.99 V

  • Output Voltage1-Nom:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HXSON

  • Package Equivalence Code:

    SOLCC6,.05,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, EXTREMELY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.45 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    1.2 mm

NCV8133BMX100TCG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • The recommended input capacitors are X7R or X5R ceramic capacitors with a voltage rating of 10V or higher, and a capacitance value of 10uF to 22uF. The recommended output capacitors are also X7R or X5R ceramic capacitors with a voltage rating of 10V or higher, and a capacitance value of 10uF to 47uF.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured.
  • Operating the device beyond its specified maximum junction temperature can lead to reduced reliability, increased thermal resistance, and potentially catastrophic failure. It's essential to ensure that the device operates within its specified temperature range to maintain its performance and reliability.
