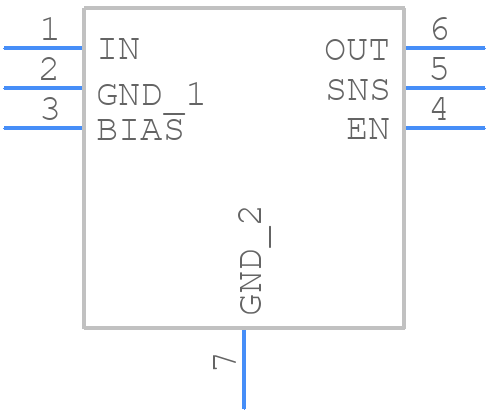

NCV8135AMT120TBG - onsemi

NCV8135AMT120TBG Details

• Manufacturer Part Number:

  NCV8135AMT120TBG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  WDFN-6

• Package Description:

  WDFN-6

• Manufacturer Package Code:

  511BR

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2018-08-02

• Manufacturer:

  onsemi

• YTEOL:

  8

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.1 V

• Dropout Voltage1-Nom:

  0.053 V

• Input Voltage Absolute-Max:

  6 V

• Input Voltage-Max:

  5 V

• Input Voltage-Min:

  1.5 V

• JESD-30 Code:

  S-PDSO-N6

• JESD-609 Code:

  e3

• Length:

  2 mm

• Line Regulation-Max:

  0.00042%

• Load Regulation-Max:

  0.0005%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  1.212 V

• Output Voltage1-Min:

  1.188 V

• Output Voltage1-Nom:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.08,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  1%

• Width:

  2 mm
