NCV8135BMT040TBG - onsemi

Description: Wettable Flanks Package option available; Guaranteed Output Current from 0mA to 500mA; 0.5% Typical Output Voltage Accuracy; Output Active Discharge option available; Very Low Bias Input Current of Typ. 35 µA; Ultra-Low Dropout of Typ. 53mV

Download NCV8135BMT040TBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

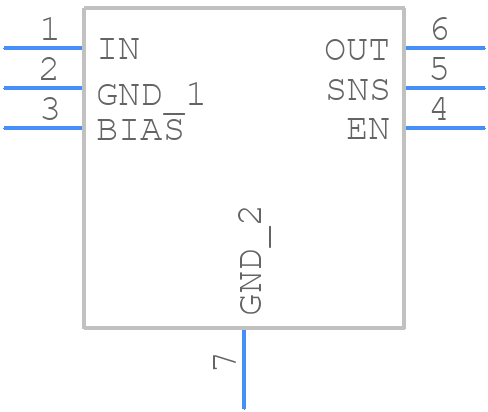

NCV8135BMT040TBG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8135BMT040TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCV8135BMT040TBG
click to zoom
3D Models
NCV8135BMT040TBG - onsemi - 3D model - Small Outline No-lead - NCV8135BMT040TBG
click to zoom

NCV8135BMT040TBG Details

  • Manufacturer Part Number:

    NCV8135BMT040TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Package Description:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2018-08-02

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.1 V

  • Dropout Voltage1-Nom:

    0.053 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5 V

  • Input Voltage-Min:

    0.7 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.000172%

  • Load Regulation-Max:

    0.0005%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    0.404 V

  • Output Voltage1-Min:

    0.396 V

  • Output Voltage1-Nom:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    2 mm

NCV8135BMT040TBG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal shield to reduce the junction temperature.
  • The recommended input capacitors are X7R or X5R ceramic capacitors with a voltage rating of 10V or higher, and a capacitance value of 10uF to 22uF. For output capacitors, use X7R or X5R ceramic capacitors with a voltage rating of 6.3V or higher, and a capacitance value of 10uF to 22uF.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and that there are no signs of overheating.
  • The recommended soldering profile for this device involves a peak temperature of 260°C, a dwell time above 217°C of 30 seconds, and a total process time of 60 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
