NCV8154MW330180TBG - onsemi

Description: Low Dropout: 140 mV Typical at 300 mA; High PSRR: 75dB at 1kHz; Thermal Shutdown and Current Limit Protections; Very Low Quiescent Current of Typ. 55 µ?A; Available in XDFN-8 1.6 x 1.2 mm Package; Operating Input Voltage Range: 1.9 V to 5.25 V

Download NCV8154MW330180TBG Model

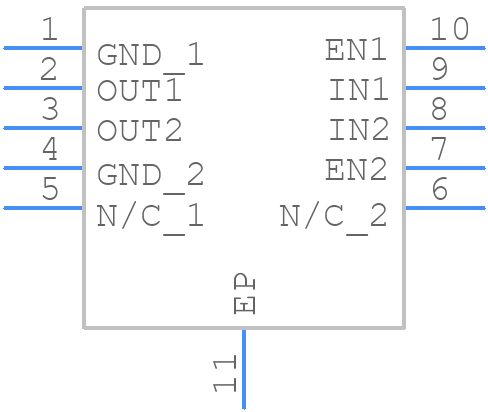

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8154MW330180TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom
3D Models
NCV8154MW330180TBG - onsemi  - 3D model - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE F
click to zoom

NCV8154MW330180TBG Details

  • Manufacturer Part Number:

    NCV8154MW330180TBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Manufacturer Package Code:

    485C

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.8

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.27 V

  • Dropout Voltage1-Nom:

    0.14 V

  • Dropout Voltage2-Max:

    0.43 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    1.9 V

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Line Regulation-Max:

    0.00792%

  • Load Regulation-Max:

    0.04%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Current2-Max:

    0.3 A

  • Output Voltage1-Max:

    3.399 V

  • Output Voltage1-Min:

    3.201 V

  • Output Voltage1-Nom:

    3.3 V

  • Output Voltage2-Max:

    1.86 V

  • Output Voltage2-Min:

    1.74 V

  • Output Voltage2-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    3 mm

NCV8154MW330180TBG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Also, ensure that the input and output capacitors are properly selected and placed close to the device to minimize parasitic inductance.
  • The critical components that affect the device's reliability and lifespan are the input and output capacitors, as well as the PCB layout and thermal management. Poor selection or placement of these components can lead to reduced lifespan or even device failure.
  • To troubleshoot issues with the device, start by checking the PCB layout and thermal management to ensure proper heat dissipation. Then, verify that the input and output capacitors are properly selected and placed. Finally, check the device's voltage and current ratings to ensure they are within the recommended specifications.
  • Yes, when designing with the NCV8154MW330180TBG, it's essential to consider EMI/EMC guidelines to minimize electromagnetic interference. This includes using proper shielding, filtering, and grounding techniques to ensure compliance with relevant standards.
