NCV8164AML180TBG - onsemi

Description: 1.6V to 5.5V input voltage; PSRR: 85 dB at 1 kHz; Low VDO at 2.8V @80mV max dropout; WDFN6 2 mm x 2 mm, DFNW8 3 mm x 3 mm, and TSOP-5; Ultra-Low Noise: 9µVRMS; 150C operating Junction temperature

Download NCV8164AML180TBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

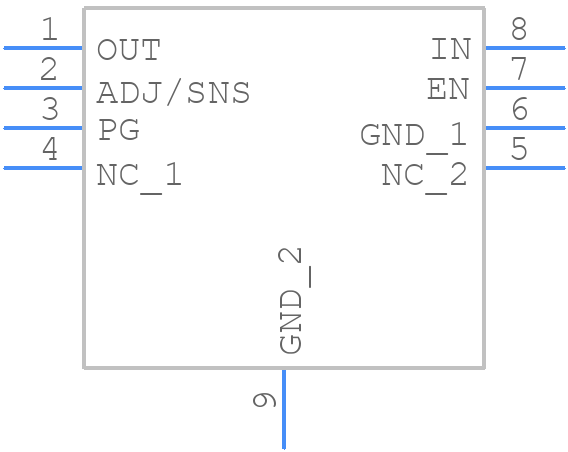

NCV8164AML180TBG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8164AML180TBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AD ISSUE A
click to zoom
3D Models
NCV8164AML180TBG - onsemi - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P CASE 507AD ISSUE A
click to zoom

NCV8164AML180TBG Details

  • Manufacturer Part Number:

    NCV8164AML180TBG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV8164AML180TBG Overview

Use the download button to access the NCV8164AML180TBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV81, or try a keyword search, such as Linear Regulator ICs
