NCV8164AML330TCG - onsemi

Description: 1.6V to 5.5V input voltage; PSRR: 85 dB at 1 kHz; Low VDO at 2.8V @80mV max dropout; WDFN6 2 mm x 2 mm, DFNW8 3 mm x 3 mm, and TSOP-5; Ultra-Low Noise: 9µVRMS; 150C operating Junction temperature

Download NCV8164AML330TCG Model

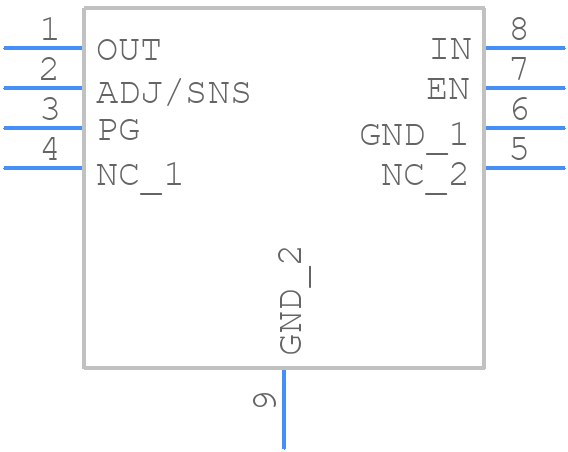

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8164AML330TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFNW8 3x3, 0.65P
click to zoom
3D Models
NCV8164AML330TCG - onsemi  - 3D model - Small Outline No-lead - DFNW8 3x3, 0.65P
click to zoom

NCV8164AML330TCG Details

  • Manufacturer Part Number:

    NCV8164AML330TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Manufacturer Package Code:

    507AD

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.19 V

  • Dropout Voltage1-Nom:

    0.125 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

NCV8164AML330TCG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the device temperature within the recommended operating range.
  • Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the recommended voltage, current, and temperature ranges to ensure reliable operation and prevent premature failure.
  • To troubleshoot issues related to the device's internal voltage regulator, start by checking the input voltage, output voltage, and current consumption. Verify that the input voltage is within the recommended range and that the output voltage is stable. Check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB.
  • The NCV8164AML330TCG is a sensitive device that requires proper ESD protection and handling. It's essential to follow standard ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging materials. Avoid touching the device's pins or exposed internal components, and ensure that the device is properly stored and transported in ESD-safe containers.
