NCV8164AMTW180TAG - onsemi

Description: 1.6V to 5.5V input voltage; PSRR: 85 dB at 1 kHz; Low VDO at 2.8V @80mV max dropout; WDFN6 2 mm x 2 mm, DFNW8 3 mm x 3 mm, and TSOP-5; Ultra-Low Noise: 9µVRMS; 150C operating Junction temperature

Download NCV8164AMTW180TAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

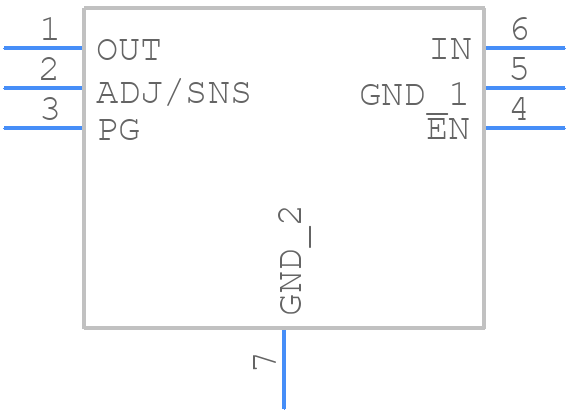

NCV8164AMTW180TAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8164AMTW180TAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFNW6 2x2, 0.65P CASE 511DW ISSUE B-1
click to zoom
3D Models
NCV8164AMTW180TAG - onsemi - 3D model - Small Outline No-lead - WDFNW6 2x2, 0.65P CASE 511DW ISSUE B-1
click to zoom

NCV8164AMTW180TAG Details

  • Manufacturer Part Number:

    NCV8164AMTW180TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW-6

  • Manufacturer Package Code:

    511DW

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.255 V

  • Dropout Voltage1-Nom:

    0.155 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.836 V

  • Output Voltage1-Min:

    1.764 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

NCV8164AMTW180TAG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • Yes, the NCV8164AMTW180TAG is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB and can withstand the mechanical stresses.
  • To troubleshoot issues related to the OCP feature, check the device's datasheet for the OCP threshold and response time. Verify that the input voltage and current are within the recommended specifications, and ensure that the device is properly configured and connected.
