Description:Ultra High PSRR 85dB at 1 kHz, 63dB at 100 kHz; Ultra Low Output Noise 8.5 µVRMS; Ultra Low Quiescent current 12 µA; Operating Input Voltage Range 1.9V to 5.5V; Very Low Dropout 200mV at 500mA
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND9173/D.
The NCV8165ML330TCG requires a stable input voltage and a proper bias circuit to ensure optimal performance. A recommended bias circuit is shown in the datasheet, but it's essential to follow the application note AND9173/D for more detailed guidance on biasing and compensation.
When designing a power supply with the NCV8165ML330TCG, critical components to consider include the input capacitors, output capacitors, inductors, and diodes. The datasheet provides guidance on component selection, but it's essential to consider factors like ripple current, voltage rating, and ESR to ensure reliable operation.
To troubleshoot common issues like oscillation or instability, start by verifying the PCB layout and component selection. Check for proper decoupling, correct component values, and ensure that the device is properly biased. The onsemi application note AND9173/D provides guidance on troubleshooting and debugging techniques.
Thermal management is critical for the NCV8165ML330TCG. Key considerations include using a heat sink with a thermal interface material, ensuring good airflow, and keeping the device away from heat sources. The datasheet provides thermal resistance values, but it's essential to follow the application note AND9173/D for more detailed guidance on thermal management.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV8165ML330TCG Overview

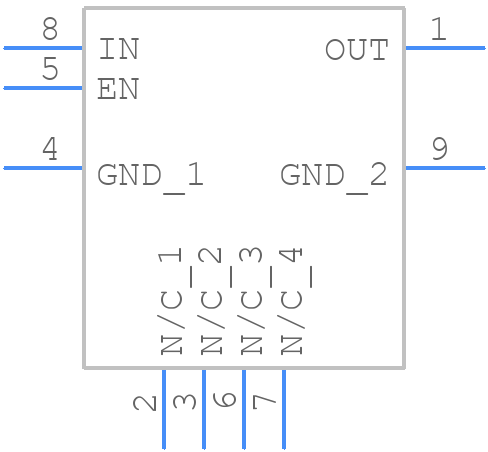

Use the download button to access the NCV8165ML330TCG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV81,
or try a keyword search, such as Linear Regulator ICs
