NCV8177AMTW090TCG - onsemi

Description: LDO Regulator Pos 0.9V 0.5A Automotive 8-Pin WDFN EP T/R

Download NCV8177AMTW090TCG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

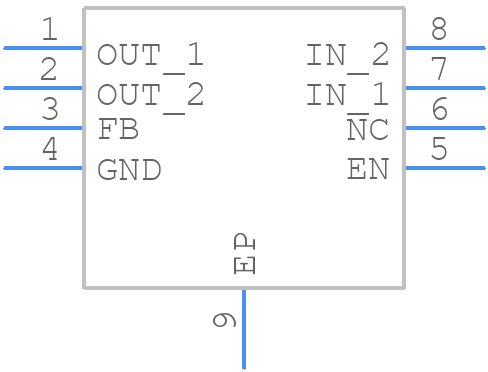

NCV8177AMTW090TCG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV8177AMTW090TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFNW8 2x2, 0.5P
click to zoom
3D Models
NCV8177AMTW090TCG - onsemi - 3D model - Small Outline No-lead - WDFNW8 2x2, 0.5P
click to zoom

NCV8177AMTW090TCG Details

  • Manufacturer Part Number:

    NCV8177AMTW090TCG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-8

  • Manufacturer Package Code:

    511CL

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.0051975%

  • Load Regulation-Max:

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    0.9135 V

  • Output Voltage1-Min:

    0.8775 V

  • Output Voltage1-Nom:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.5%

  • Width:

    2 mm
