NCV8177AMTW330TCG - onsemi

Description: Several Fixed Output Voltage Options and others available upon request in range from 0.7 V to 3.6 V; 1.6 V to 5.5 V Operating Input Voltage Range; Low Quiescent Current of Typ. 60 µA; Very Low Dropout: 200 mV Typ. at Iout = 0.5 A (1.8V version); High 75 dB at 1 kHz PSRR; Internal Soft-Start; ±0.8% Accuracy at Room temperature; Thermal Shutdown and Current Limit Protections; Stable with Small 1 µF Ceramic Capacitors

Download NCV8177AMTW330TCG Model
Schematic

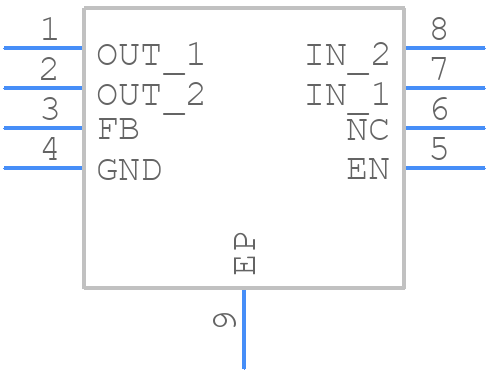

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV8177AMTW330TCG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFNW8 2x2_2024
click to zoom
3D Models
NCV8177AMTW330TCG - onsemi  - 3D model - Small Outline No-lead - WDFNW8 2x2_2024
click to zoom

NCV8177AMTW330TCG Details

  • Manufacturer Part Number:

    NCV8177AMTW330TCG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW-8

  • Package Description:

    WDFN-8

  • Manufacturer Package Code:

    511CL

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.19 V

  • Dropout Voltage1-Nom:

    0.11 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max:

    0.0071775%

  • Load Regulation-Max:

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.333 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

NCV8177AMTW330TCG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
  • The NCV8177AMTW330TCG has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
  • Yes, the NCV8177AMTW330TCG is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q100 qualification and to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Consult the datasheet and application notes for more detailed troubleshooting guidance.
